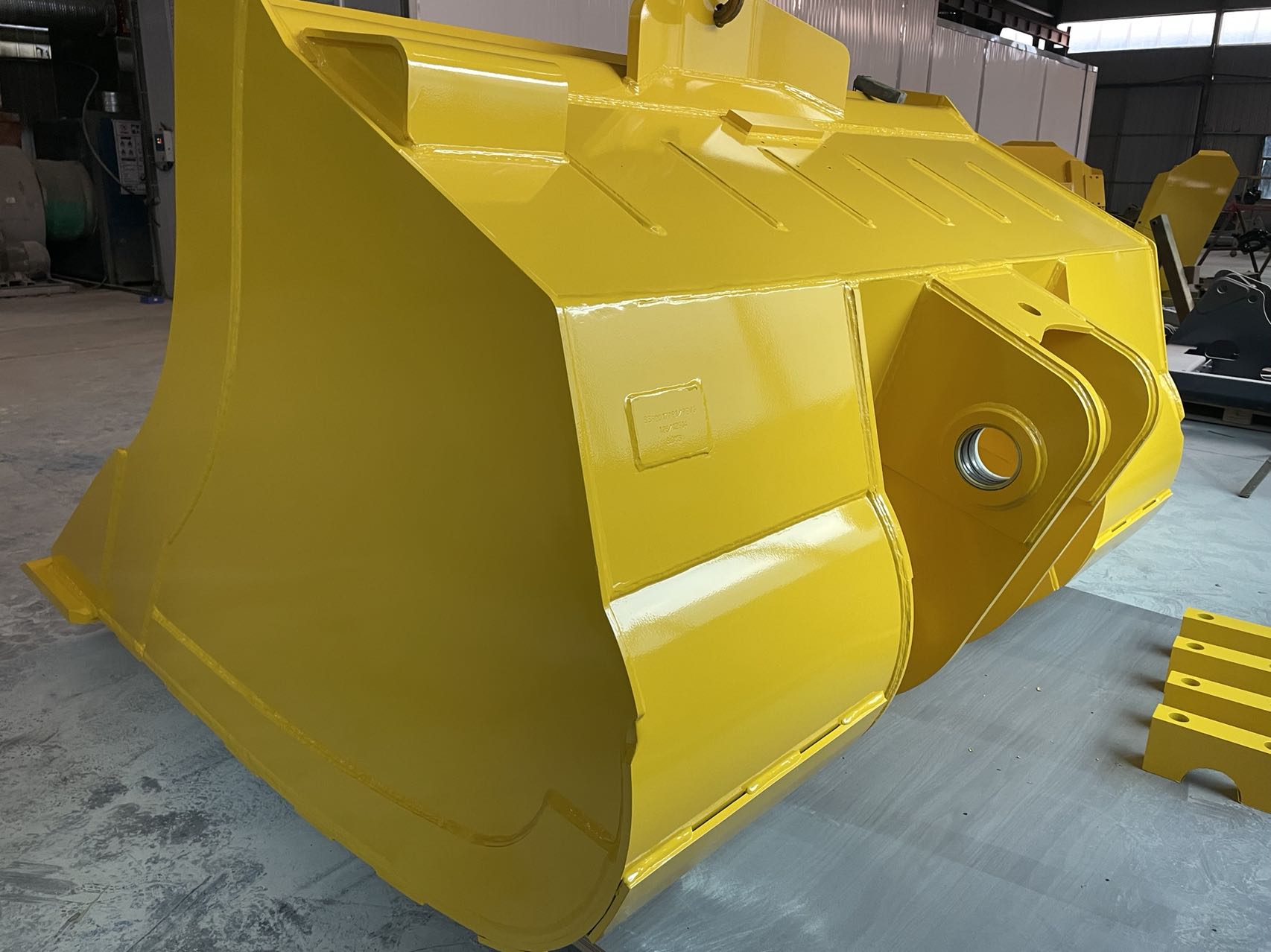

Efficient Heavy-duty Underground Loader Buckets for Mining
● Various brands of underground loaders can be matched perfectly.

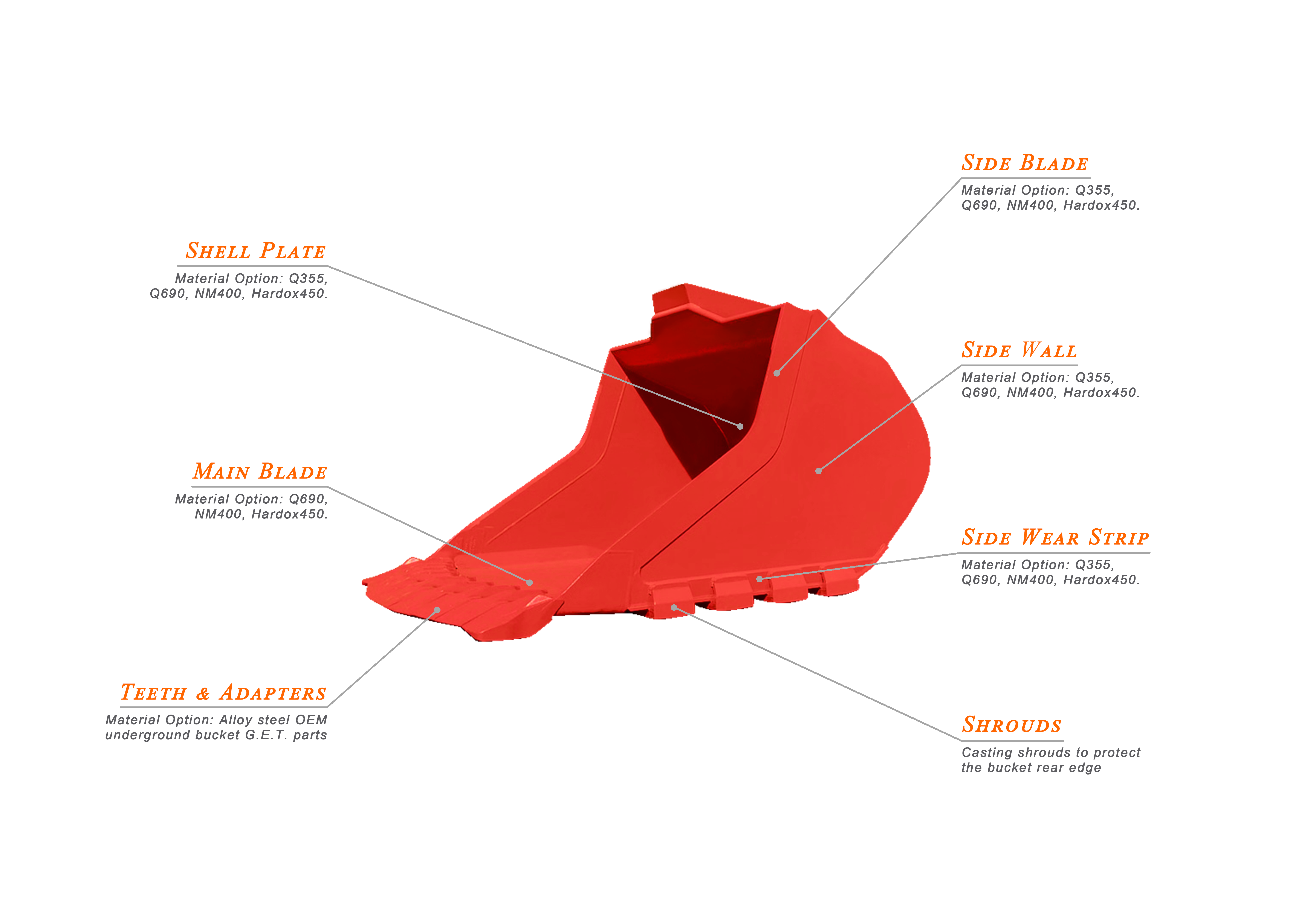

● Material: Q355 & NM400 are standard on Crafts buckets for maximum cost-effectiveness. Q690, Hardox450 are also available for maximum life and strength.
● G.E.T. parts: Smooth main blade is now standard on Crafts buckets. OEM underground loader bucket teeth are available.
| Brand | Model | Part No. | Bucket Capacity (m³) |
Width-Bucket （mm） |
| CAT | R1300 | 243-5577 | 2.4 | 2155 |
| 186-9278 | 2.8 | 2185 | ||
| 243-6143 | 3.1 | 2318 | ||
| 243-6224 | 3.4 | 2518 | ||
| R1600 | 227-4702 | 4.2 | 2723 | |
| 203-1792 | 4.8 | 2723 | ||
| 227-4704 | 5.6 | 2723 | ||
| 227-4703 | 5.9 | 3018 | ||
| R1700 | 256-0862 | 4.6 | 2689 | |
| 255-9970 | 5 | 2689 | ||
| 252-7194 | 5.7 | 2689 | ||
| 226-5404 | 6.6 | 2689 | ||
| R2900 | 303-8806 | 6.3 | 3176 | |
| 249-4899 | 7.2 | 3176 | ||
| 249-4892 | 8.3 | 3272 | ||
| 249-4893 | 8.9 | 3472 | ||
| Atlas Copco | ST 1030 | 5.4 | 2484 | |
| Sandvik | LH410 | 5.4 | 2550 | |
| LH517 | 10 | 3310 | ||
| Toro 0010 | 10 | 3310 |
The underground loader bucket is also called scooptram bucket. On the connection dimension, the underground loader bucket is the same complicated as the wheel loader bucket. If there is any mistake on the connection, the whole bucket is scrapping. In that case, please remember to show us your machine model when you need our quotation. At present, Crafts is able to supply you most popular underground loader buckets on the market.
