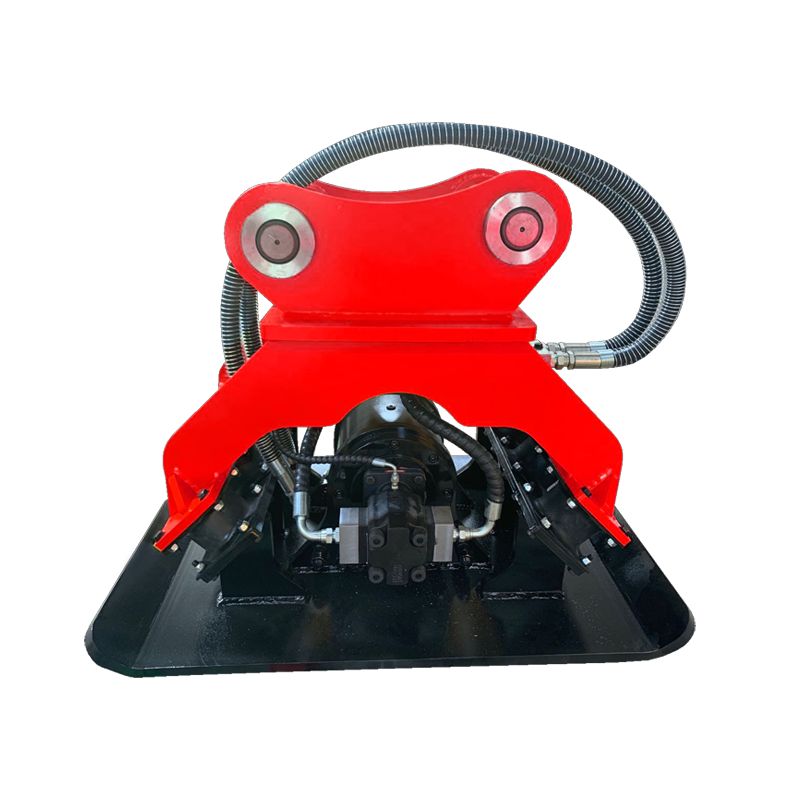

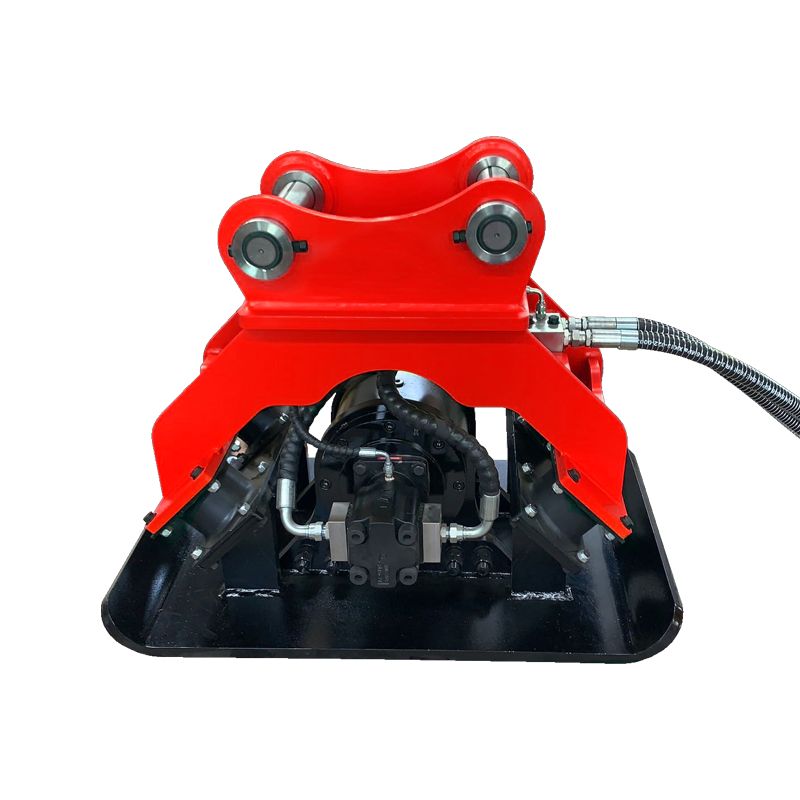

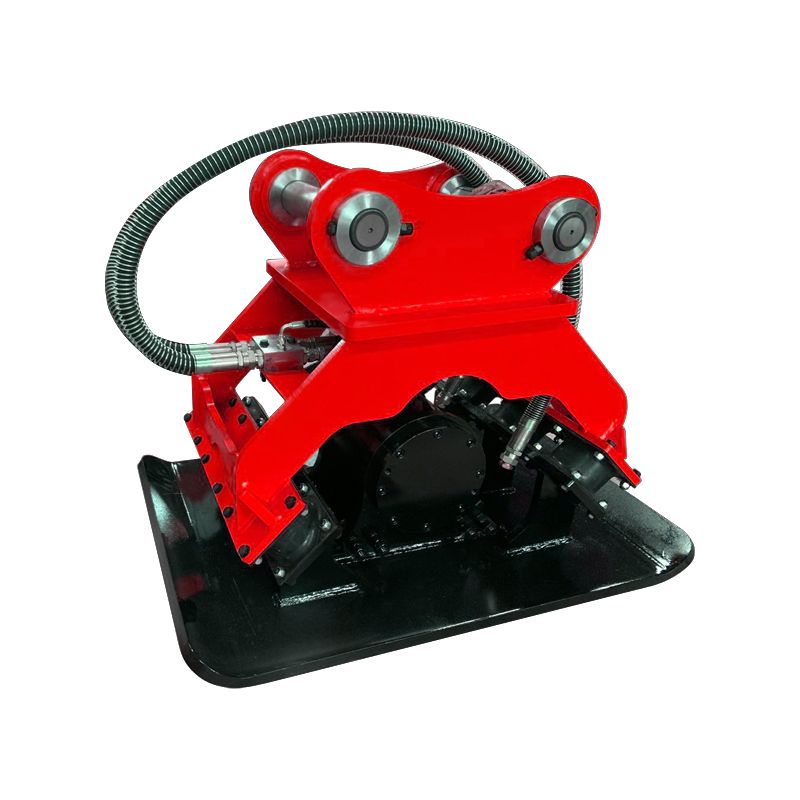

Excavator Hydraulic Compactors for Compacting Soil Effectively
● Various brands of excavators and backhoe loaders can be matched perfectly.
● Available in Wedge Lock, Pin-on, S-Style to match different quick couplers.
● Material: Q355, Q690, NM400, Hardox450 available.
● Designed for optimum performance and durability with premium quality hydraulic motor.
● The angle between rubber damper and vibrating plate maximizes pressure to the soil and minimizes stress to the machine.
|
Model |
Impulse Force |
Vibration per Minute (Max) |
Required Oil Flow |
Working |
Weight |
Suitable |
|
ton |
vpm |
lpm |
kg/cm² |
kg |
ton |
|
|
HC 30 |
2 ~ 3 |
2,400 |
60 ~ 80 |
90 ~ 130 |
280 |
4 ~ 10 |
|
HC 60 |
5~ 6 |
2.,000 |
80 ~ 110 |
100 ~ 140 |
550 |
12 ~ 16 |
|
HC 80 |
7 ~ 8 |
2.,000 |
110 ~ 140 |
120 ~ 160 |
700 |
18 ~ 24 |
|
HC 100 |
9 ~ 10 |
2.,000 |
130 ~ 160 |
130 ~ 170 |
950 |
24 ~ 34 |
|
NO |
PARTS NAME |
QTY |
|
NO |
PARTS NAME |
QTY |
|
1 |
MOTOR |
1 |
22 |
BRACKET ASS`Y |
1 |
|
|
2 |
MOTOR BOLT |
4 |
23 |
NYLON NUT |
48 |
|
|
3 |
SPRING WASHER |
68 |
24 |
BRACKET PIN STOP PING |
2 |
|
|
4 |
NIPPLE |
2 |
25 |
BRACKET PIN BOLT |
2 |
|
|
5 |
HOSE |
1 |
26 |
TOP BRACKET ASS`Y |
1 |
|
|
6 |
BODY COVER BOLT |
16 |
27 |
BRACKET PIN |
2 |
|
|
7 |
O-RING |
1 |
28 |
T-BUSH |
4 |
|
|
8 |
O-RING |
2 |
29 |
BASE PLATE ASS`Y |
1 |
|
|
9 |
BODY COVER (A) |
1 |
30 |
BRACKET PIN NUT |
4 |
|
|
10 |
BEARING |
2 |
31 |
RUBBER BUFFER |
6 |
|
|
11 |
SOCKET PLUG |
2 |
32 |
O-RING |
2 |
|
|
12 |
CAM SHAFT ASS`Y |
1 |
33 |
IN OUT FLANGE |
2 |
|
|
13 |
BODY BOLT |
8 |
34 |
IN OUT FLANGE BOLT |
8 |
|
|
14 |
SPRING WASHER |
20 |
35 |
SOCKET |
2 |
|
|
15 |
BODY ASS`Y |
1 |
36 |
NIPPLE |
1 |
|
|
16 |
NUT |
32 |
37 |
CONTROL VALVE |
1 |
|
|
17 |
RUBBER BOLT |
48 |
38 |
NIPPLE |
1 |
|
|
18 |
TOP BRACKET BOLT |
12 |
39 |
HOSE |
1 |
|
|
19 |
NIPPLE |
2 |
40 |
HOSE |
1 |
|
|
20 |
NIPPLE |
2 |
41 |
NIPPLE |
1 |
|
|
21 |
BODY COVER (B) |
1 |
42 |
HOSE |
2 |
