Efficiently Sweep Large Areas with Skid Steer Angle Sweeper

Short Description:

The skid steer loader angle sweeper is able to handle both light and heavy-duty clean-up tasks in construction, municipal and industrial. The angle broom sweeps the wastes forward, it can’t gather the wastes into the sweeper body as the pick-up sweeper, instead, it sweeps the wastes together in front of itself.


Product Detail

Product Tags

Product Detail

The skid steer loader angle sweeper is able to handle both light and heavy-duty clean-up tasks in construction, municipal and industrial. The angle broom sweeps the wastes forward, it can’t gather the wastes into the sweeper body as the pick-up sweeper, instead, it sweeps the wastes together in front of itself. Therefore, comparing to the pick-up sweeper, the angle sweeper would cause the dust emission during the operating.

Meanwhile, the side broom and the water spraying kit are unavailable for the angle sweeper. However, the angle sweeper is able to tilt 30° to both right and left side, to help you handle the different work condition easily. In that case, we can find that the angle sweeper is better for big area clean-up outdoor, especially that once you need to deal with the snow on the road, there is no need to worry about the dust emission problem, the angle sweeper is really a good choice since it avoids the trouble to dump the wastes.

Product Display

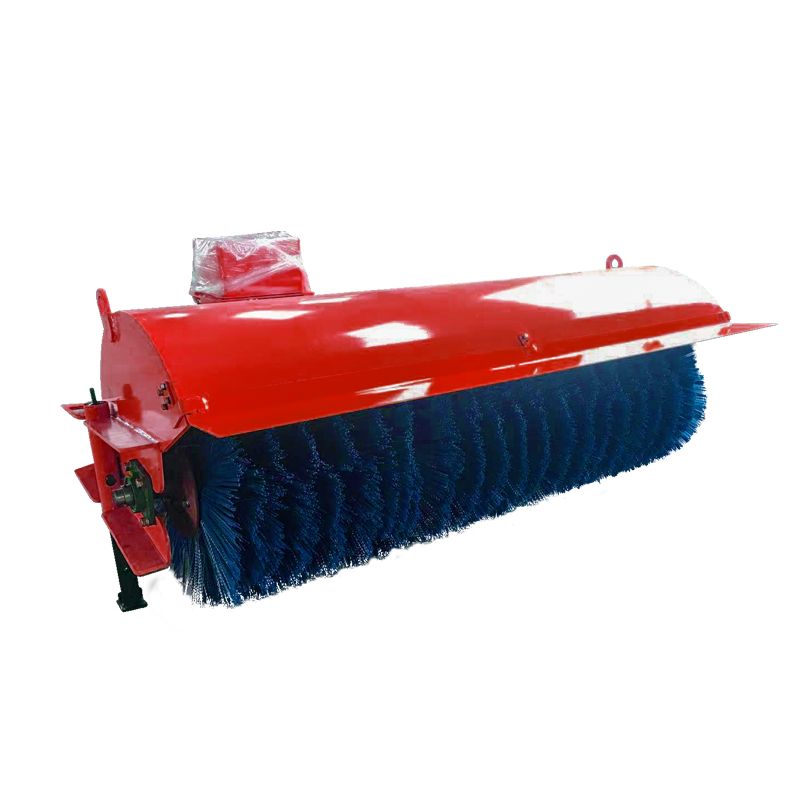

Angle Sweepers (1)

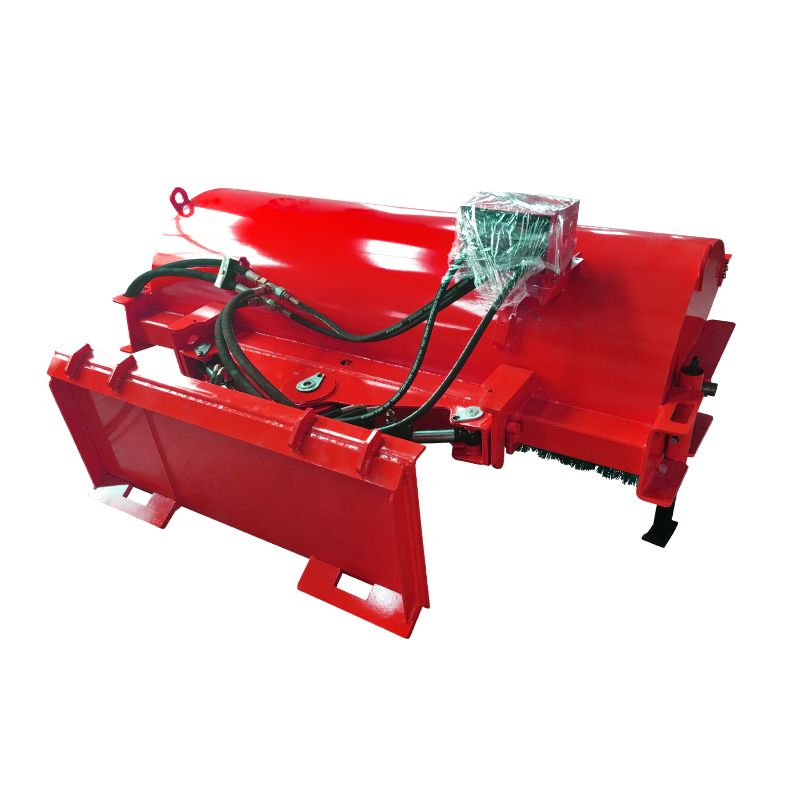

Angle Sweepers (2)

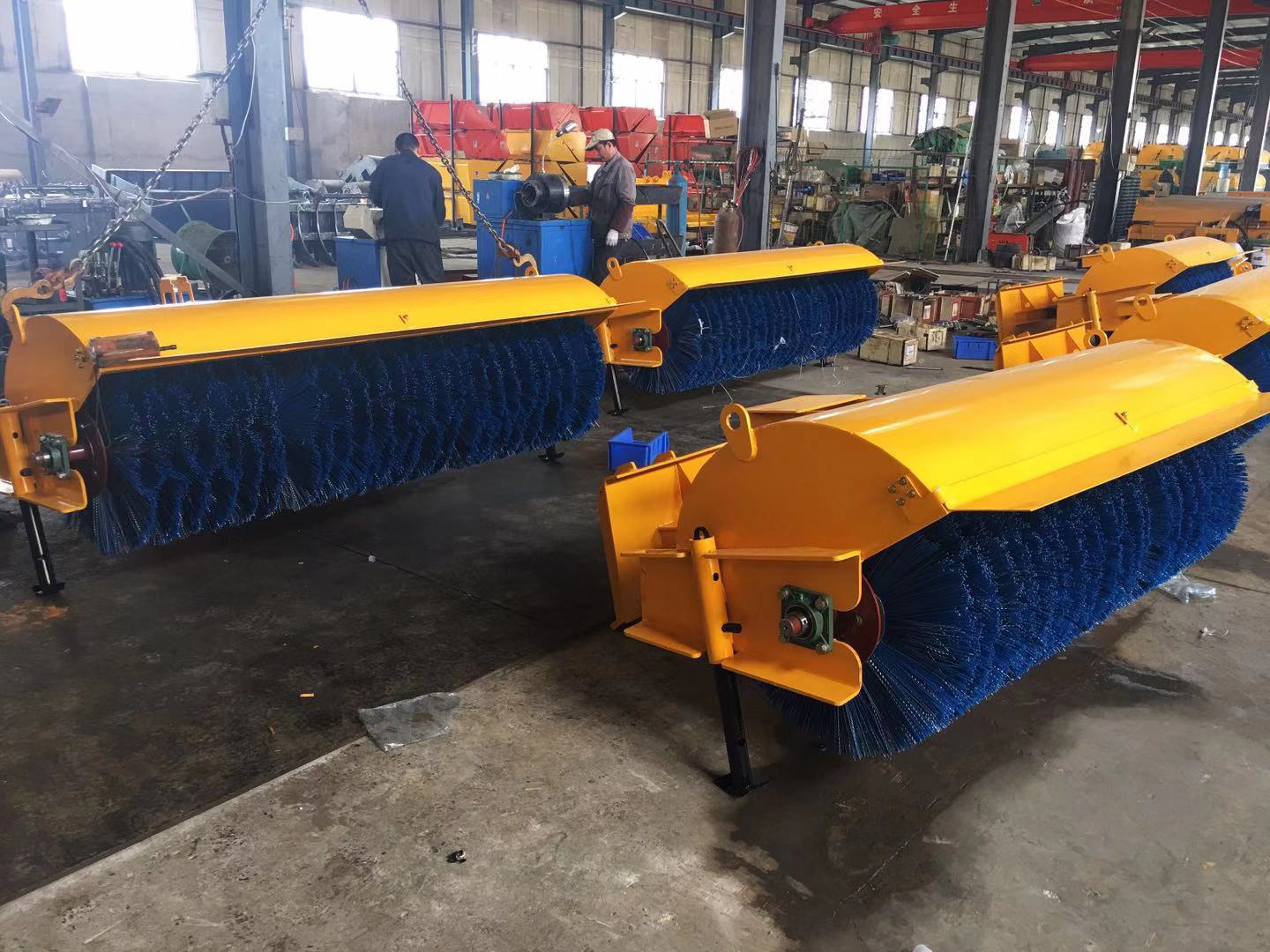

Angle Sweepers (3)

Specification

Mode / Specification CAS-60" CAS-72" CAS-84"
Total Dimension
L*W*H
(mm)
1600*2000*800 1600*2300*800 1600*2600*800
Total Weight
(kg)
550 600 650
Overall Width
(mm)
2000 2300 2600
Sweeping Width
(mm)
1520 1820 2130
Rotation Angle
(Degree)
30 30 30
Brush Diameter
(mm)
660 660 660
Brush Material Standard Polypropylene & Steel 1:1 Mix
Optional Polypropylene
Optional Steel
Working Pressure
(MPa)
16-18 16-18 16-18
Working Flow
(L/min)
50-90 50-90 50-90
Working Voltage
(V)
DC12/24 DC12/24 DC12/24
Optional Side Brush Unavailable Unavailable Unavailable
Optional Water Kit Unavailable Unavailable Unavailable

Product Application

The skid steer loader angle sweeper is also called angle broom. As a great tool on clean-up to match any ground-clearing job, it is designed to sweeping dust, different debris, snow from the ground surface. You can deal with the clean-up tasks easy and fast with its help, especially for the outdoor work.
