Pallet Fork

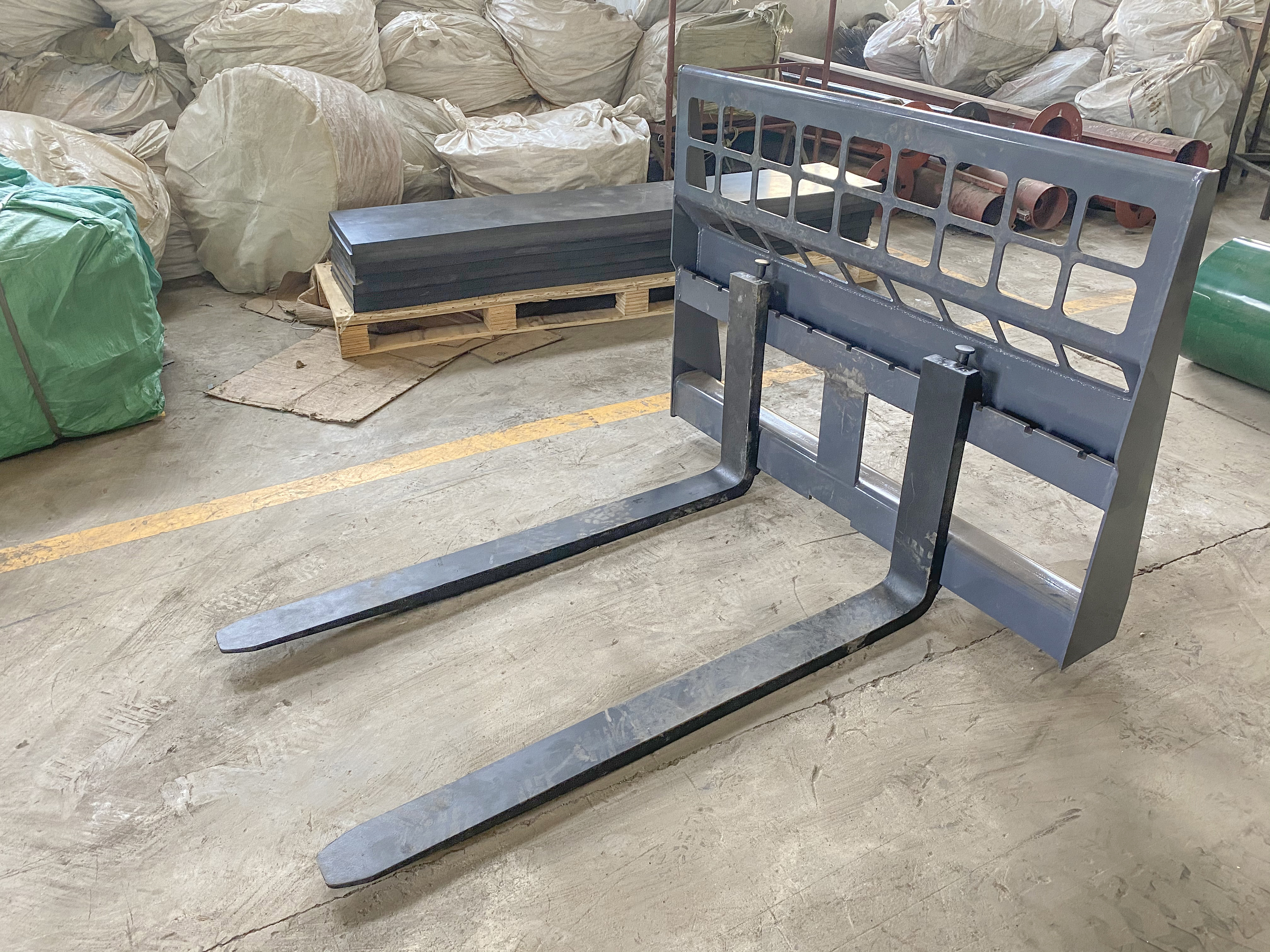

Skid steer loader pallet fork is equipped with a pair of pallet fork tines. It is a convenient tool to transform you skid steer into a small forklift. With a pallet fork equipped skid steer loader, you can handle all the palletized goods that below 1 ton to 1.5 ton easily, quickly, efficiently and cost effectively, such as lifting, moving and managing. It is not only able to equip on the skid steer loaders, but also able to equip on the medium and small size tractors.

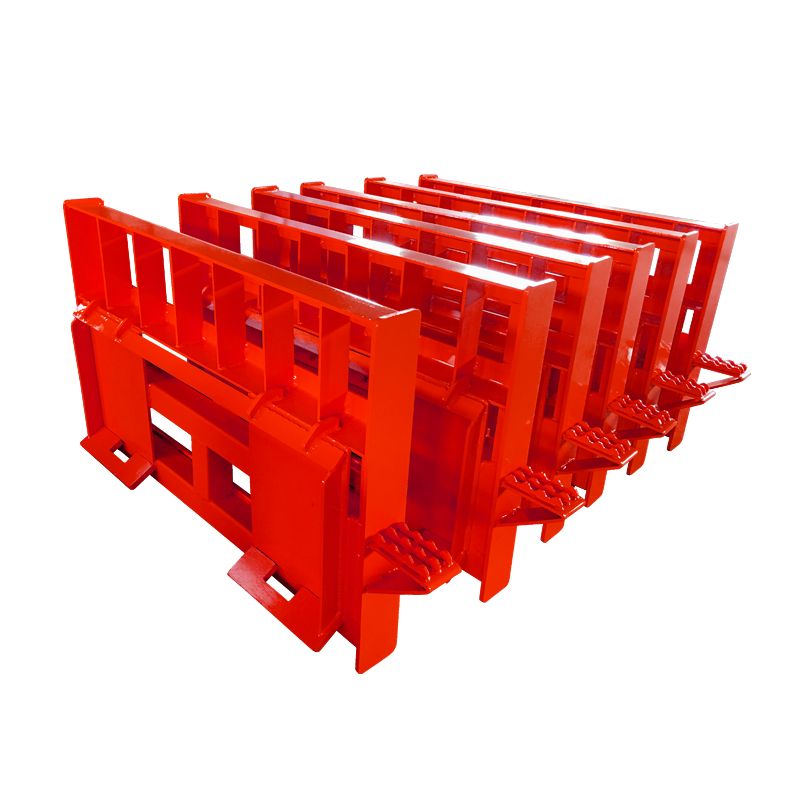

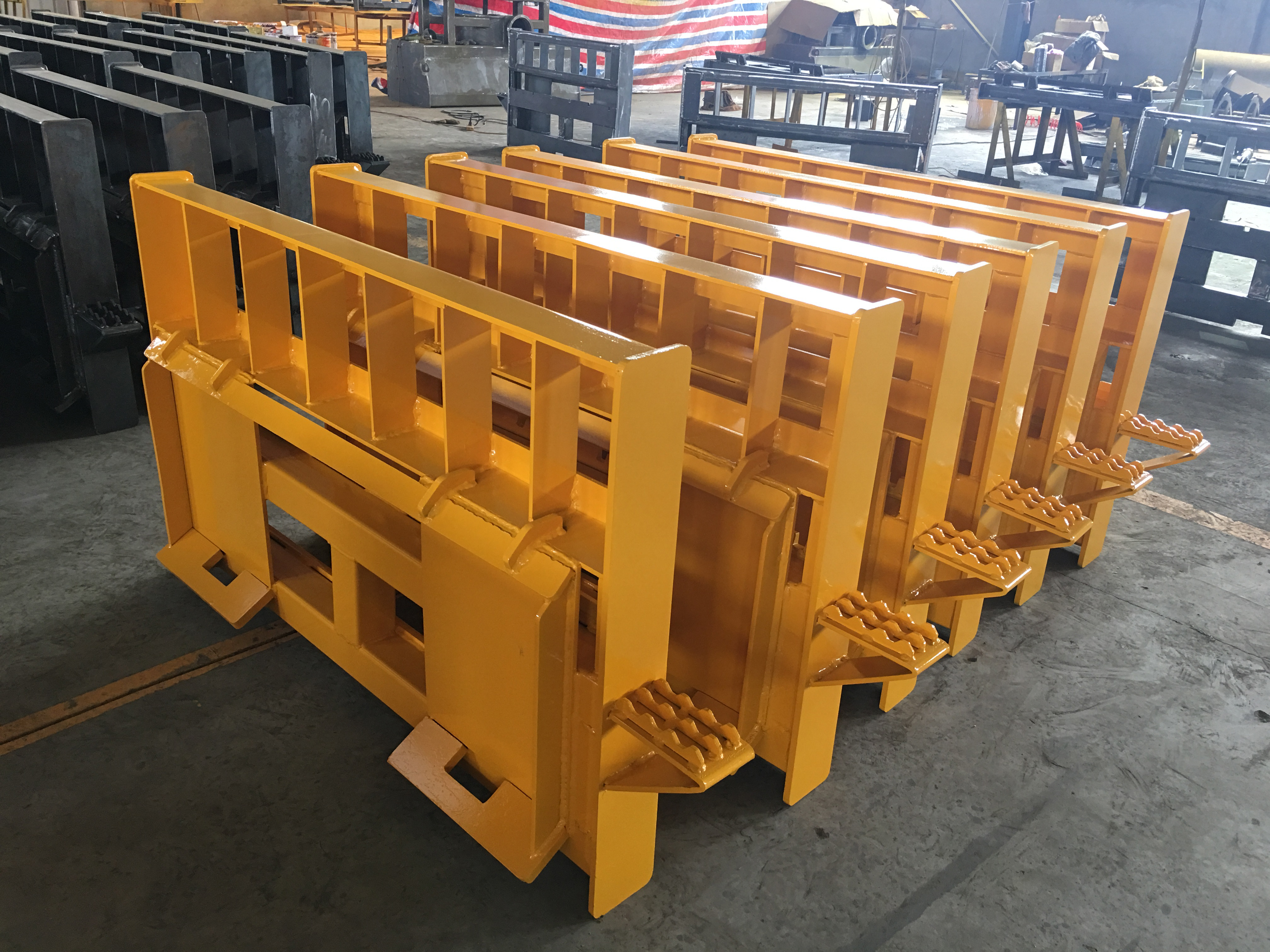

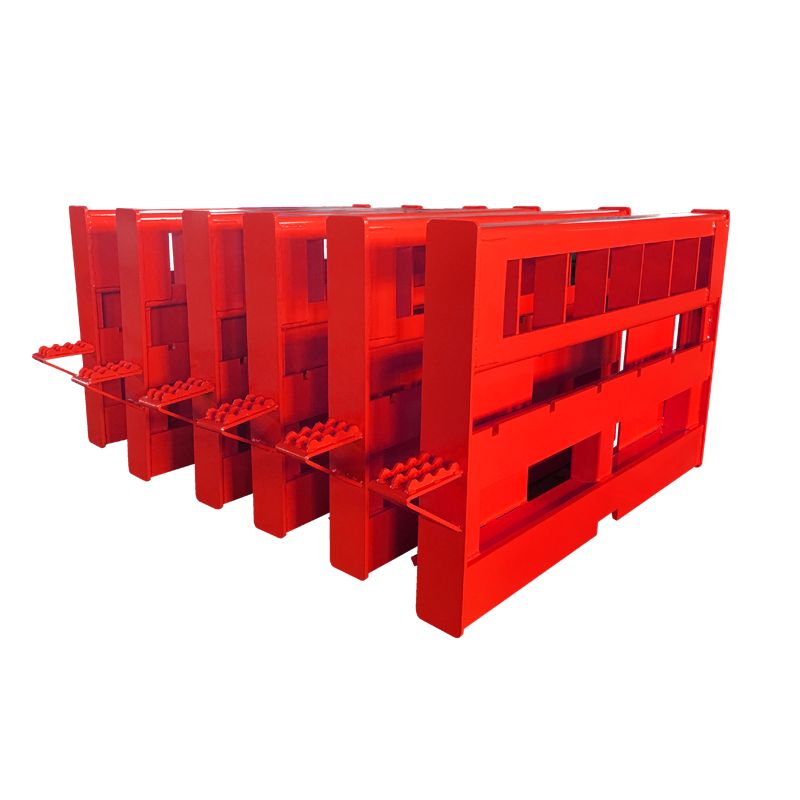

At Crafts, the frame of the pallet fork is made from the high strength steel Q355, which make our pallet fork strong and durable, even after years of heavy use, the pallet fork blades can still be slid easily.

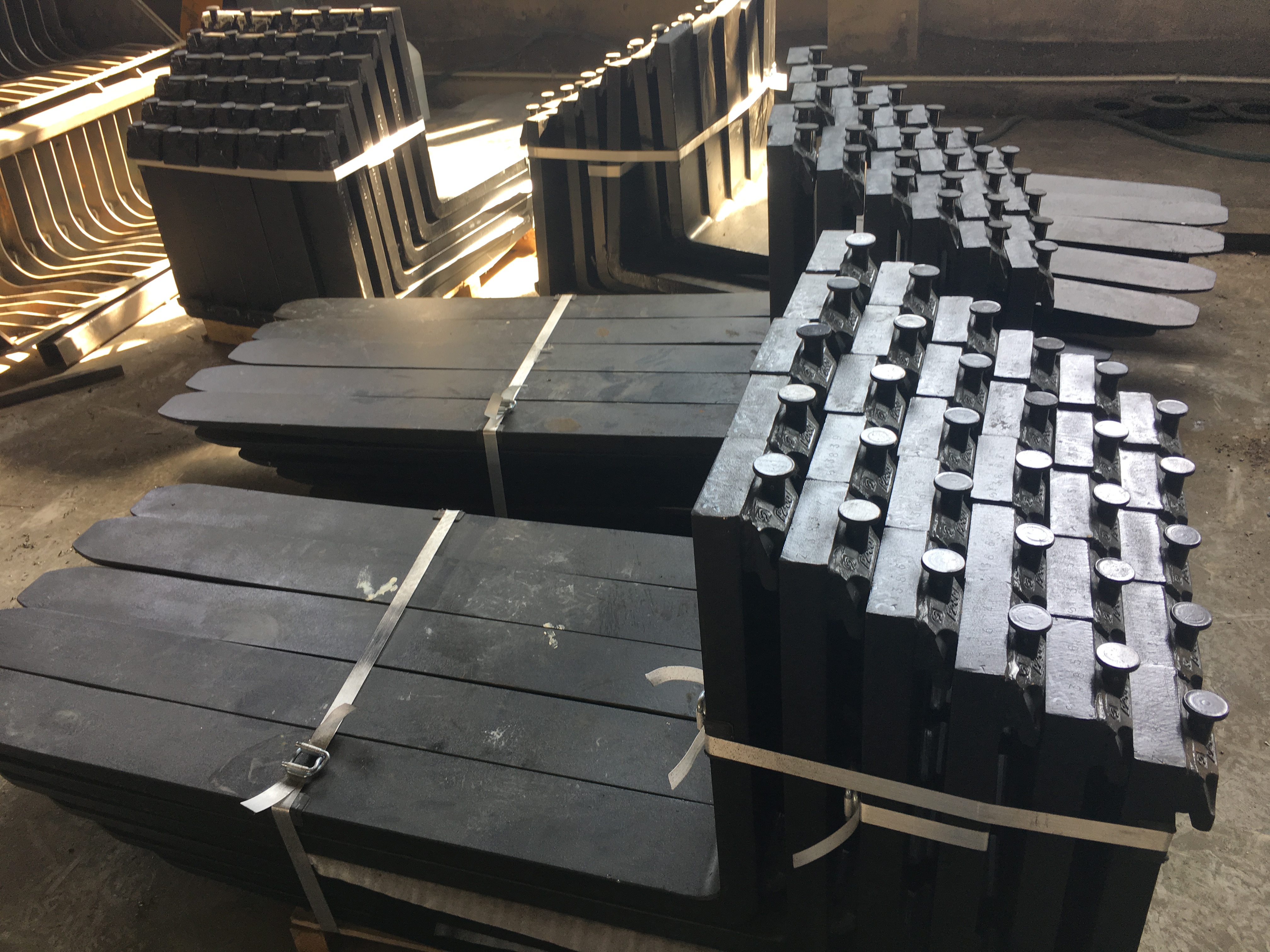

The pallet fork tines of our pallet fork are made of alloy steel. They are forged and heat treated, comparing to some pallet forks tines that made from the steel plate structure, the forge and heat treatment process make the pallet fork tines very strong and tough but not brittle. Lifting 2 tons goods is really a easy action to our pallet fork tines.
| Model / Specification | CPF-45" | CPF-60" |
| Length (mm) |
1298 | 1298 |
| Width (mm) |
1206 | 1587 |
| Height (mm) |
890 | 890 |
| Weight (kg) |
162 | 207 |
| Max adjustable tine distance (mm) |
1143 | 1524 |
| Min adjustable tine distance (mm) |
230 | 230 |
| Fork length (mm) |
1100 | 1100 |
| Assembly distance (mm) |
380 | 380 |
| Load capacity (ton) |
1 | 1.5 |
As an ideal tool to lift the palletized goods by a skid steer loader or a tractor, pallet fork is designed for taking places of a forklift by a skid steer loader to solve the light goods lifting, moving, and even the warehouse managing. It can fit to the universal skid steer style quick tach system or to some tractors. Model of the well-known brands are available to match, such as Bobcat, JCB, Kubota, Case, John Deere, Komatsu etc.
