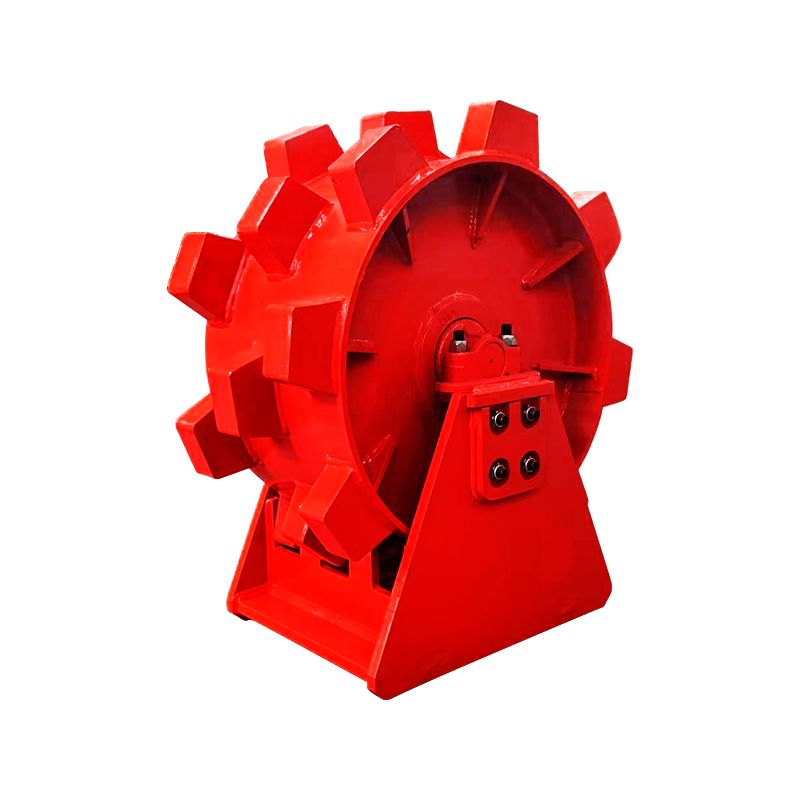

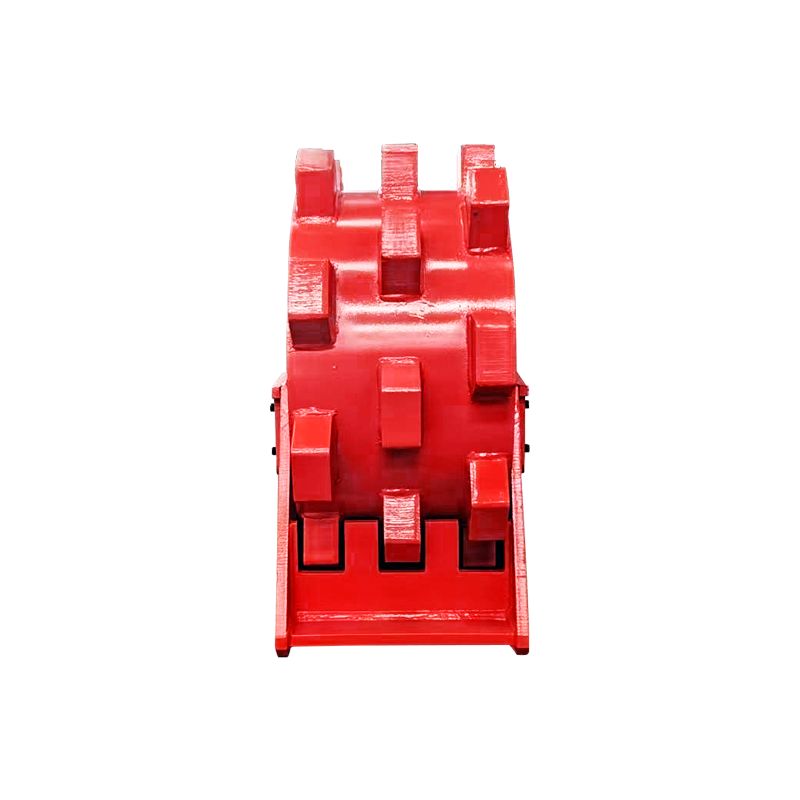

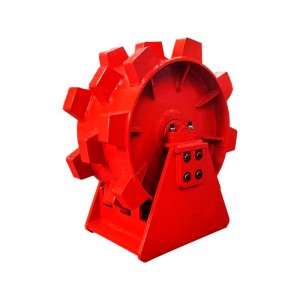

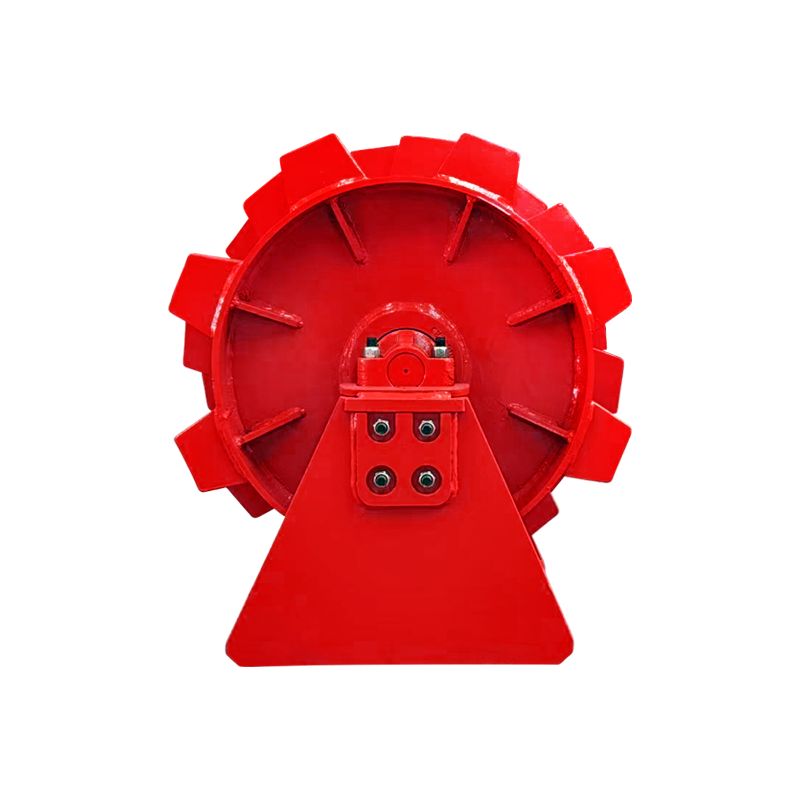

Excavator Compaction Wheel for Back Filling Material Compaction
In normal, the heavy clay is not easy to torn apart by vibration, but the staggered pads that welded on the compaction wheel are able to shear the heavy clay easily, and help you get better compaction. Therefore, the compaction wheels are faster and more effective, as well as bring less wear and tear on your excavator. Crafts offered a full range of compactor wheels of machine sizes. Meanwhile, if you have your special requires on the compaction wheels width and its pads, customized service is available, too.
● Various brands of excavators and backhoe loaders can be matched perfectly.
● Available in Wedge Lock, Pin-on, S-Style to match different quick couplers.
● Material: Q355, Q690, NM400, Hardox450 available.
|
Model |
CW05 |
CW12 |
CW20 |
CW30 |
|
Suitable Excavator (ton) |
5~8 |
12~16 |
18~24 |
29~38 |
|
Wheel Width (mm) |
430 |
450 |
590 |
720 |
|
Material |
Q345 & NM400 |
Q345 & NM400 |
Q345 & NM400 |
Q345 & NM400 |
|
Weight (kg) |
300 |
820 |
980 |
1090 |
The compaction wheel is also called wheel compactor. When you need to compact fill material (especially fill the material back in a trench), a compaction wheel would be an optimal solution to you. It is a crucial tool that offer you the flexibility for your compaction tasks.
