Hydraulic Breaker Parts Perfectly Fit to Soosan Hydraulic Breakers

Short Description:

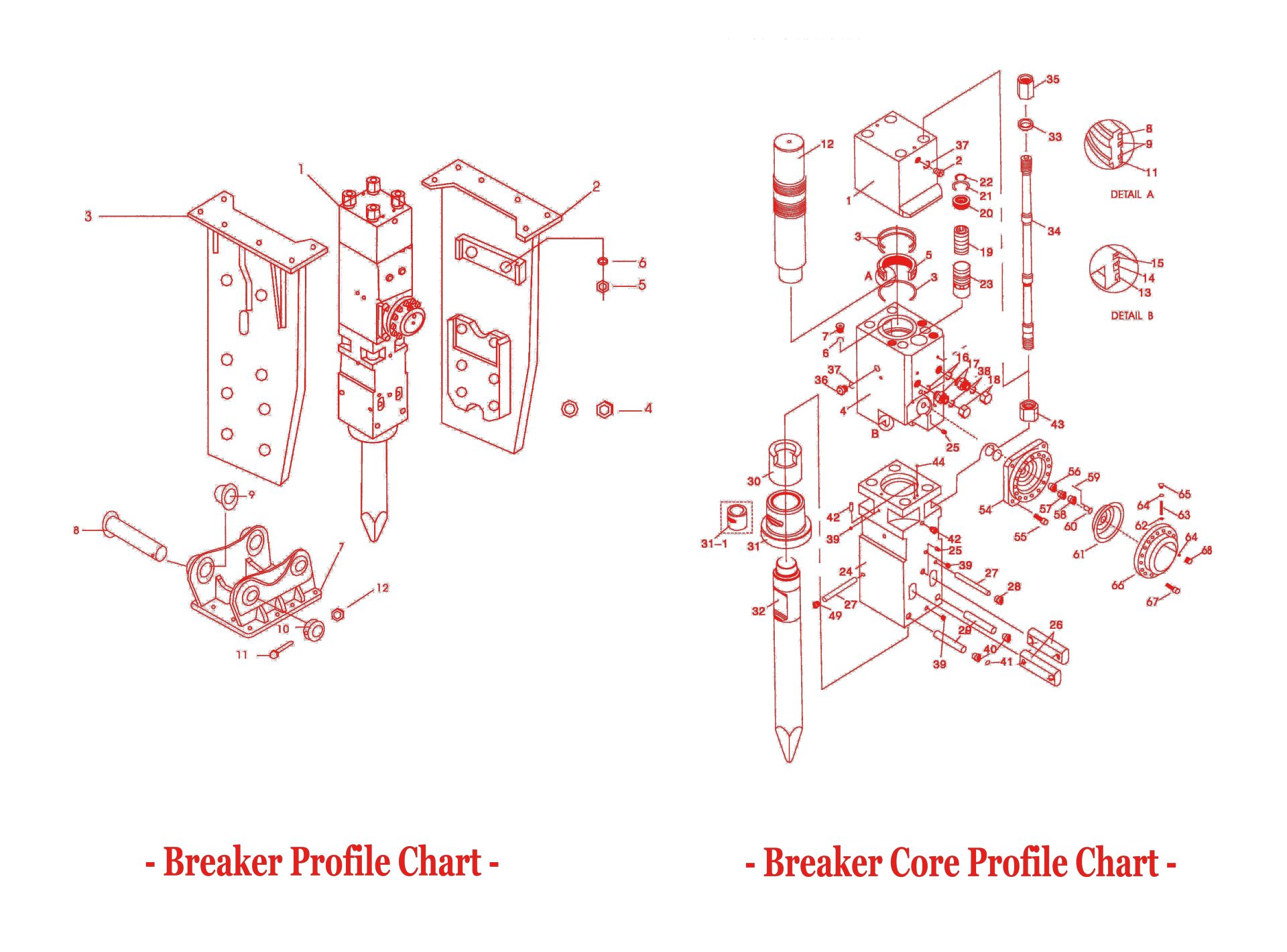

To make sure we can understand what parts that you need exactly for your breaker, please find the parts number and name according to the following breaker profile chart and the breaker spare parts listing. Then please show us its name and your required quantity.

Send email to us

Product Detail

Product Tags

Breaker Spare Parts Listing

Item	Description	Quantity
1	Breaker Core Assembly	1
2	Breaker Bracket Assembly(Rh)	1
3	Breaker Bracket Assembly(Lh)	1
4	Side Hoint Nut	16
5	Mounting Cap Hex. Nut	12
6	Spring Washer	12
7	Mounting Cap	1
8	Mounting Pin	2
9	Mounting Bush	4
10	Mounting Pin Stopper	2
11	Stopper Hex. Bolt	2
12	Stopper Hex. Nut	4

Product Display

Breaker Core Spare Parts Listing

Item	Description	Quantity
1	Back Head	1
2	Back Head Charging Valve Assembly	1
3	Seal Retainer	1

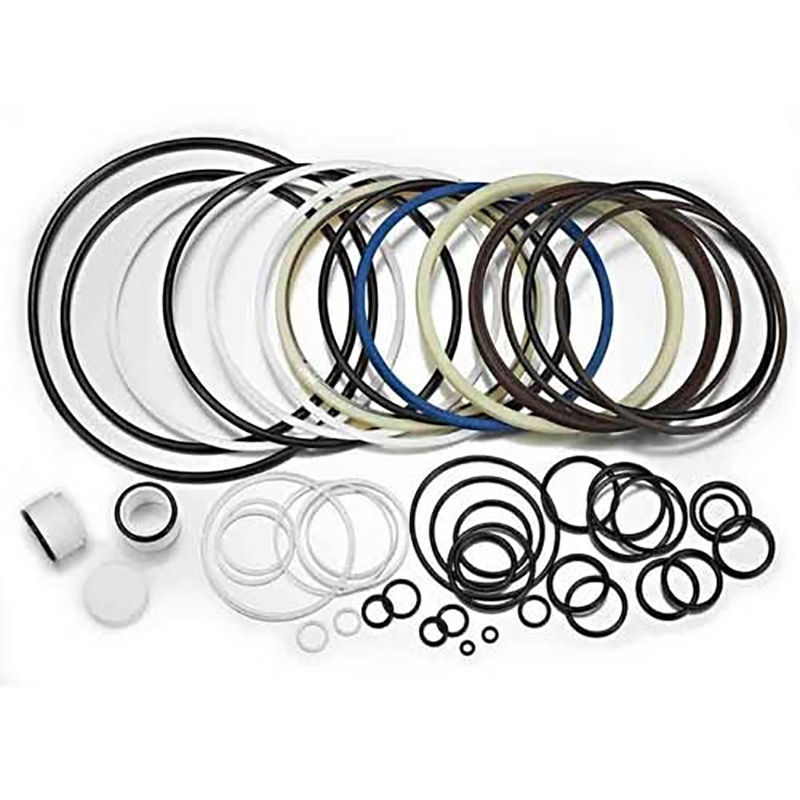

4	O-Ring	3
5	Cylinder	1
6	O-Ring	3
7	Socket Plug	3
8	Gas Seal	1
9	Step Seal	2
10	N/A
11	Buffer Seal	1
12	Piston	1
13	Dust Seal	1
14	U-Packing	1
15	N/A
16	O-Ring	2
17	Adapter	2
18	Union Cap	2
19	Valve	1
20	Valve Cap	1
21	O-Ring	1
22	O-Ring	1
23	Valve Sleeve	1
24	Front Head	1
25	Grease Nipple	1
26	Rod Pin	1
27	Stop Pin	3
28	Rubber Plug	2
29	Front Head Pin	2

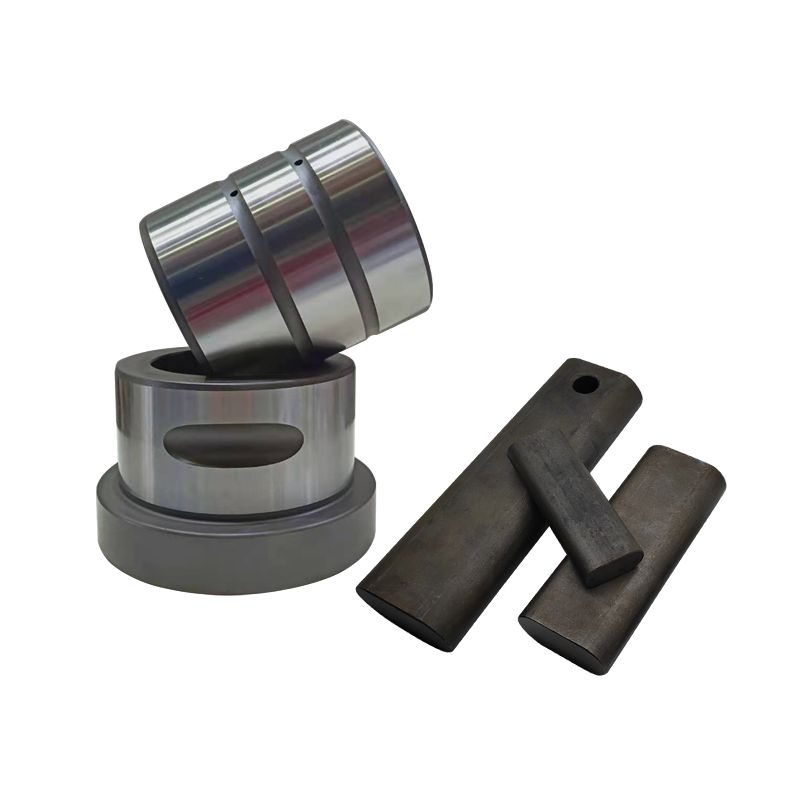

30	Ring Bush	1
31	Lower Bush(Front Cover)	1
31-1	Lower Bush(Silence Type)	1

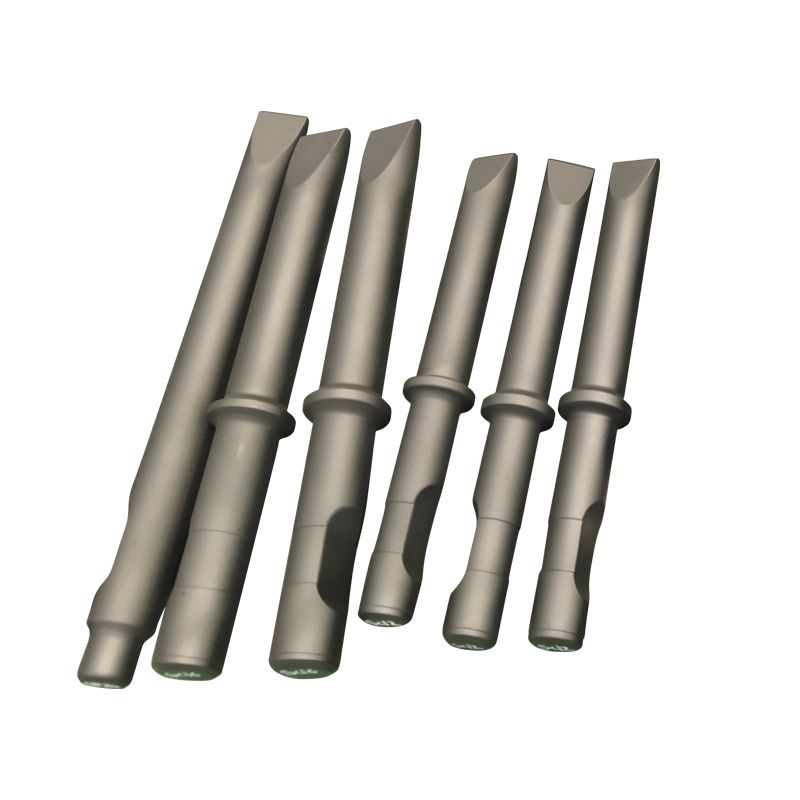

32	Rod(Cheisel: Moil, H-Wedge, Blunt)	1
33	Through Bolt Washer	4

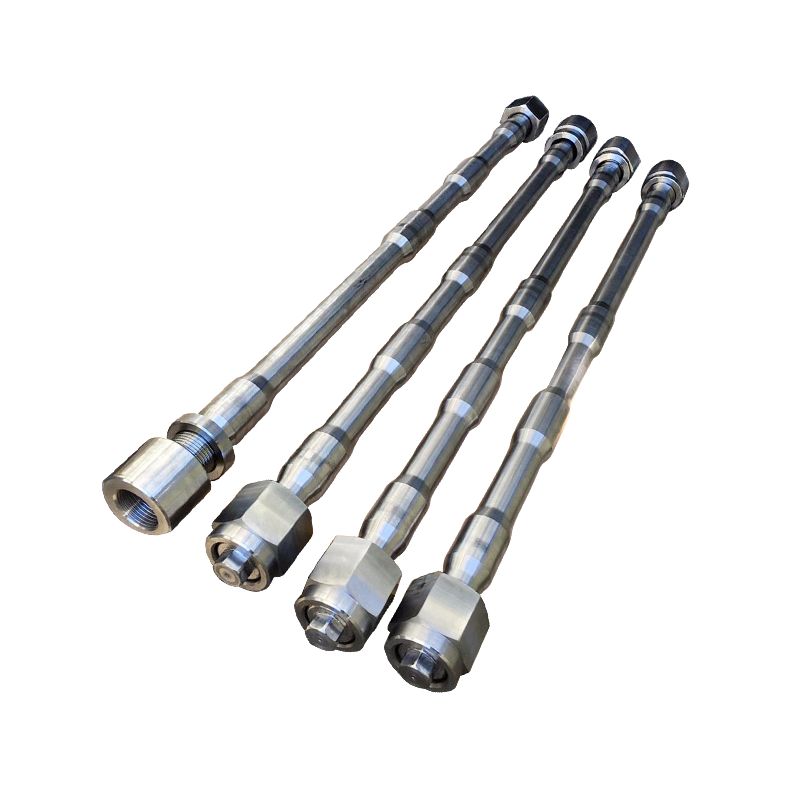

34	Through Bolt	4
35	Through Bolt Hex. Nut	4
36	N/A
37	O-Ring	2
38	N/A
39	N/A
40	Rubber Plug	2
41	Snap Ring	2
42	Dowel Pin
44	Through Bolt Tri. Nut	4
45	O-Ring	1
46	Back-up Ring	1
47	Valve Adjustter	1
48	Valve Adjustter Nut	1
49	Rubber Plug	1
50	Heli-Sert Coil	4
51	Acc. Holder Nut	1
52	O-Ring	1
53	Back-up Ring	1
54	Accumulator Body	1
55	Socket Bolt	4
56	Acc. Holder(A)	1
57	Acc. Holder(B)	1
58	Acc. Holder(C)	1
59	Acc. Holder Body Bolt	1
60	Acc. Holder Pin	1

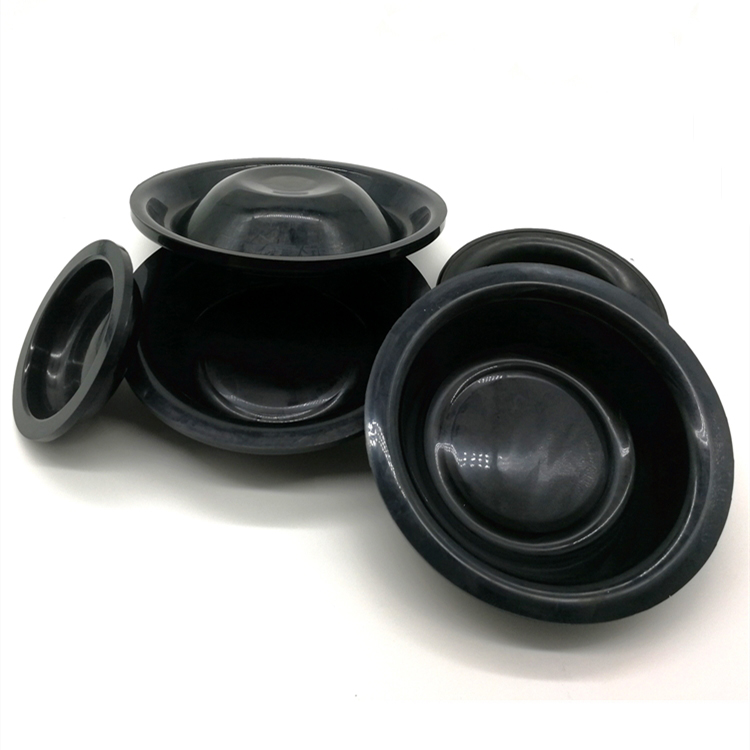

61	Diaphragm	1
62	O-Ring	1
63	Acc. Charging Valve	1
64	O-Ring	1
65	Acc. Charging Valve Cap	1
66	Accumulator Cover	1
67	SocketBolt	12
68	Acc. Hex. Plug	1
