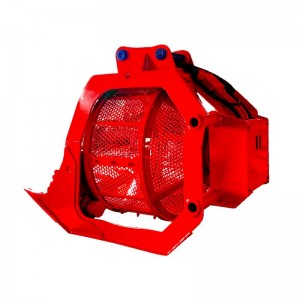

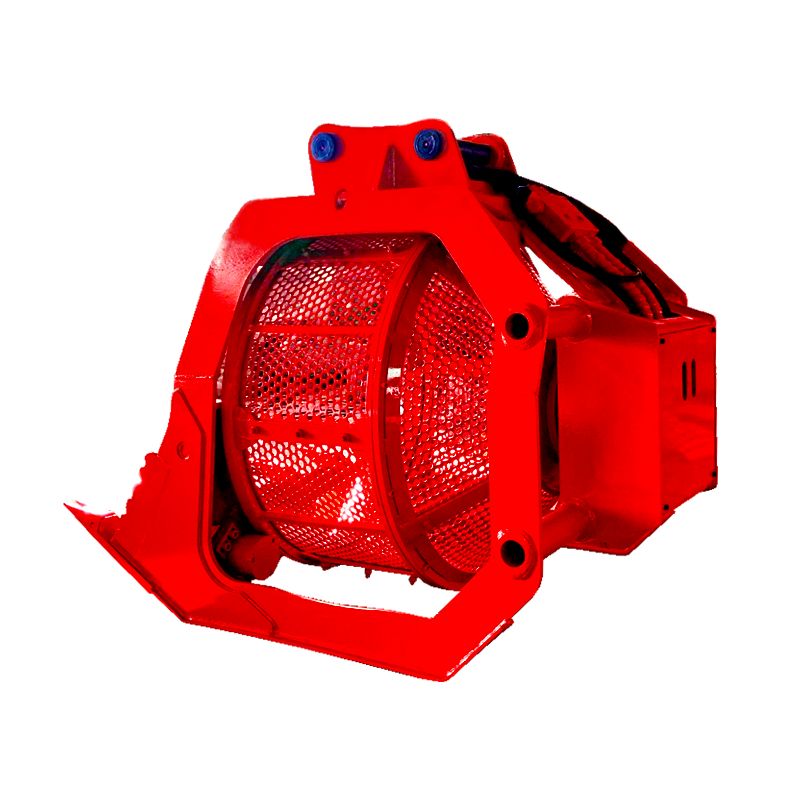

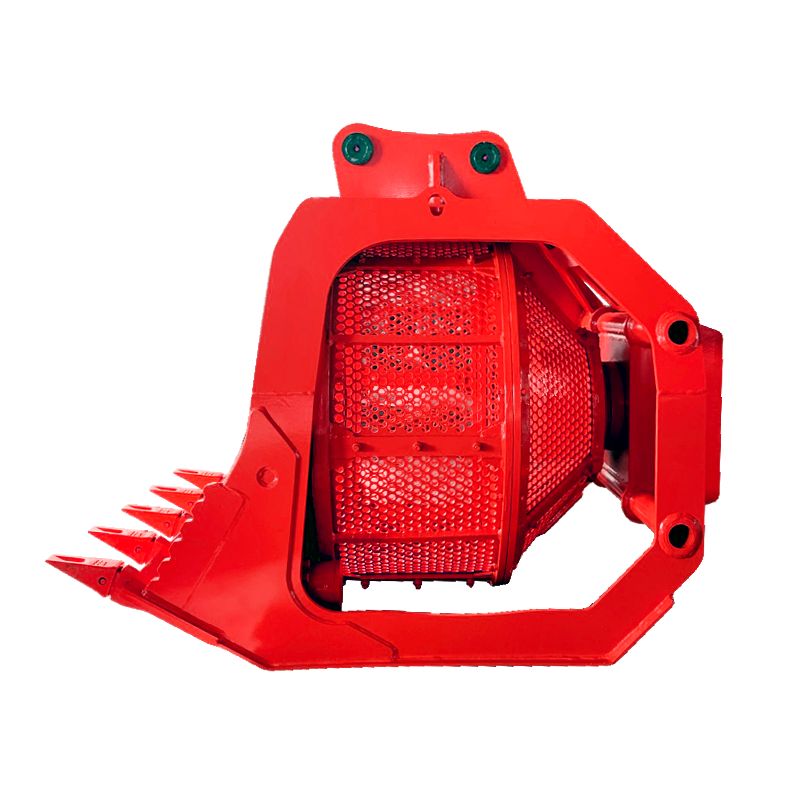

360° Rotary Screening Bucket for the Selection of Natural Materials

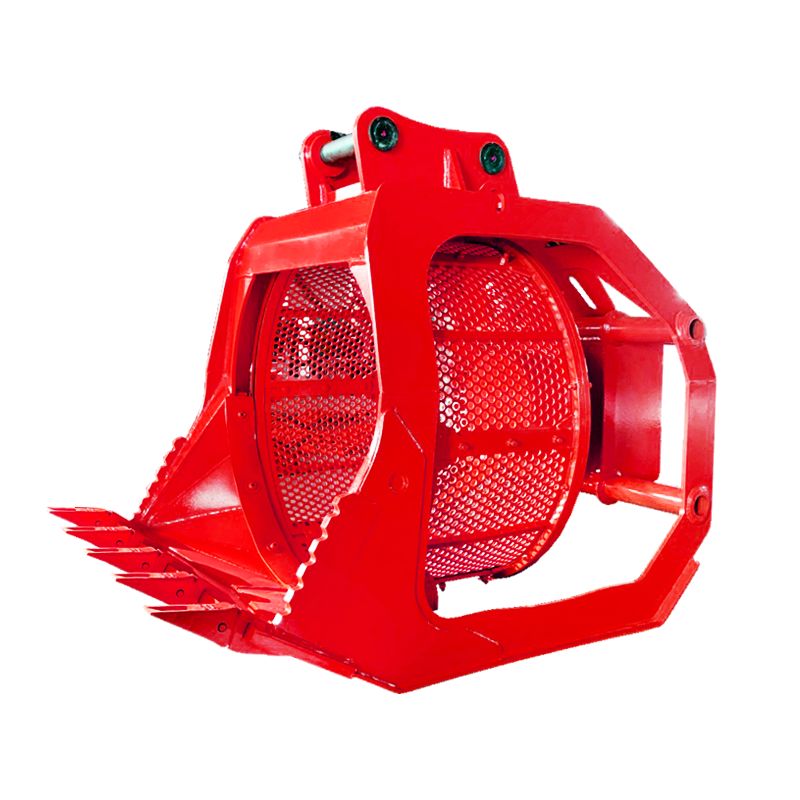

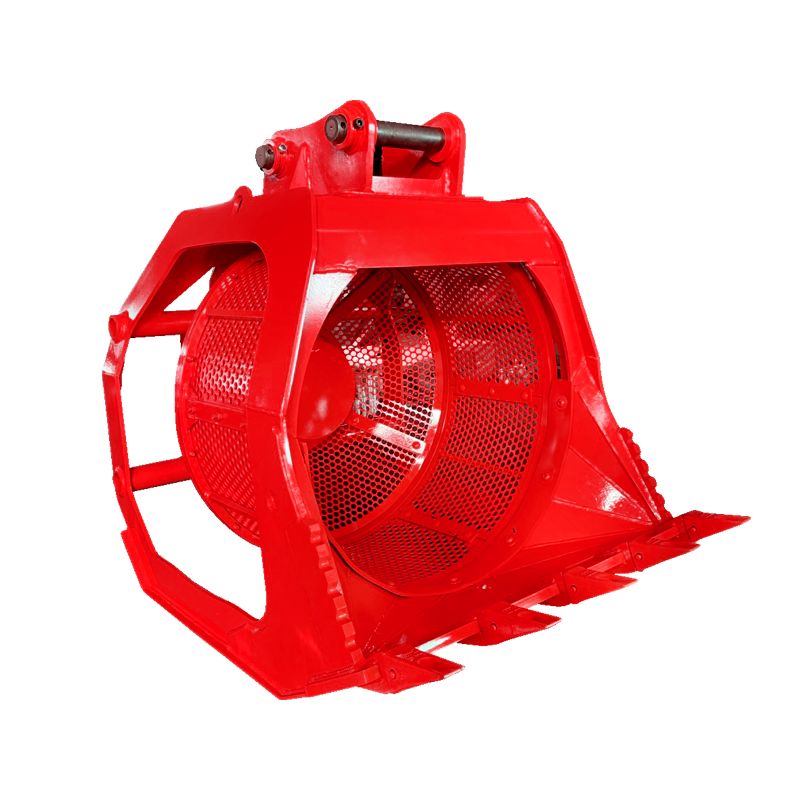

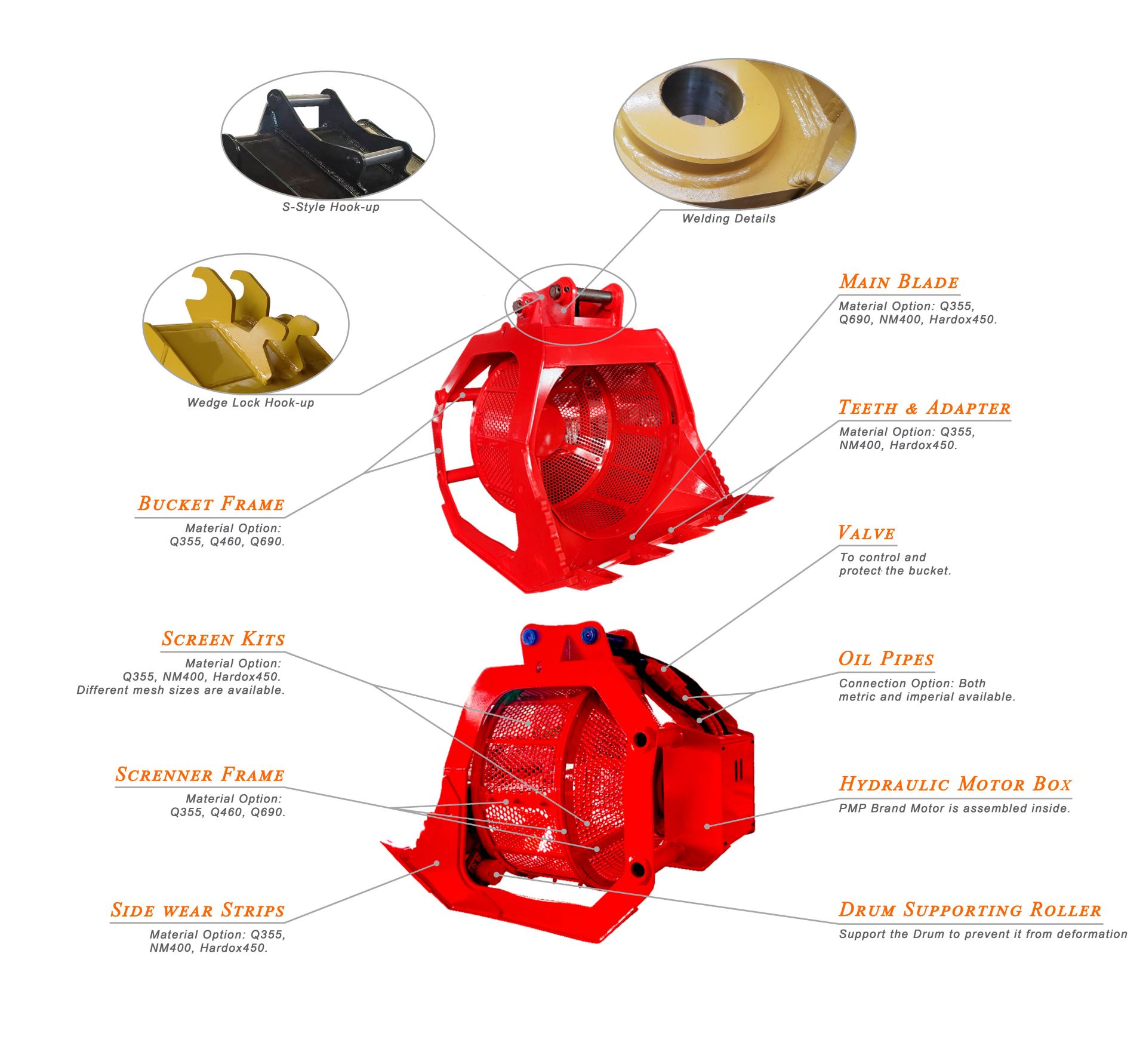

Teeth and smooth cutting edge are both available to meet your different work condition. Meanwhile, to get the right size material after sieving, Crafts rotary screening bucket equipped with an interchangeable mesh system around the drum inner circumference and the cone area from 20mm upwards as standard, and special sizes can be manufactured to handle the special work. For the silver sand sorting tasks, the iron gauze can be overlayed on our rotary screening bucket screening kits to handle the tasks easily. The pipes and the hydraulic connection port (Both Metric Unit and Imperial Unit are available) have been equipped to help you solve the hydraulic connection problem, which make the installation really easy. Crafts rotary screening bucket is available in the most popular quick coupler and the pin grabber version.
● Various brands of excavators and backhoe loaders can be matched perfectly.
● Available in Wedge Lock, Pin-on, S-Style to match different quick couplers.
● Material: Q355, Q690, NM400, Hardox450 available, casting deputy blade available.
● Smooth Cutting Edge: Casting alloy, NM400, Hardox450.
● Mesh Size: Customization available. φ20, φ25, φ30, φ35 hole; 40*40, 50*50, 60*60, 70*70, 80*80 square; and hexagon hole.
| HRSB30 | HRSB60 | HRSB100 | HRSB200 | HRSB300 | HRSB350 | ||
| A ±3% | mm | 930 | 1130 | 1580 | 1940 | 2300 | 2930 |
| in | 37 | 45 | 63 | 77 | 90 | 115 | |
| B ±3% | mm | 690 | 890 | 1200 | 1400 | 1870 | 2320 |
| in | 27 | 35 | 47 | 55 | 74 | 92 | |
| C ±3% | mm | 680 | 860 | 1200 | 1420 | 1880 | 2380 |
| in | 27 | 34 | 47 | 56 | 74 | 94 |
| HRSB30 | HRSB60 | HRSB100 | HRSB200 | HRSB300 | HRSB350 | |
| Model (Ton) | ≥3＜6 | ≥6＜9 | ≥9＜20 | ≥20＜30 | ≥30＜35 | ≥35 |
| Weight (kg) | 230 | 340 | 830 | 1270 | 2250 | 3950 |
| Bucket Roller Size Diameter*Depth(mm) | φ610*450 | φ770*570 | φ1000*780 | φ1140*1015 | φ1540*1180 | φ1940*1590 |
| Capacity(m³) | 0.13 | 0.26 | 0.62 | 1.2 | 2.4 | 4.7 |
| Speed (r/min) | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
| Oil Flow (L/min) | 40 | 40 | 65 | 65 | 65 | 160 |
| Max Pressure (Mpa) | 30 | 30 | 30 | 30 | 30 | 30 |
Crafts Rotary screening bucket is a multifunctional attachment. It has different applications in screening separating natural materials, such as river beds, quarry residues, sand and dry soil, and sometimes, it is also used in construction and demolition waste, top soil, turf, and even for mixing and composting.
