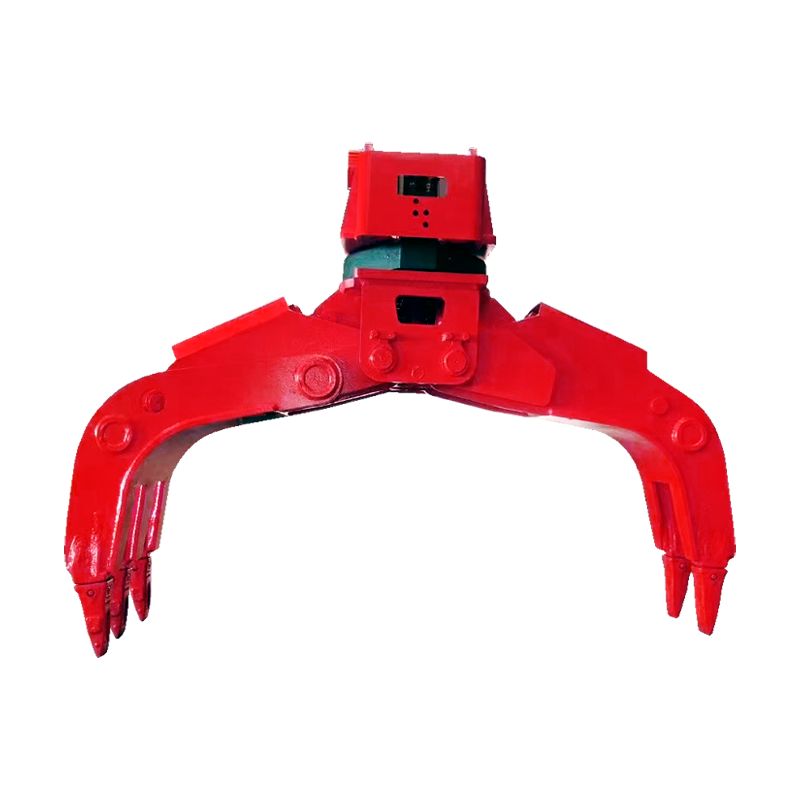

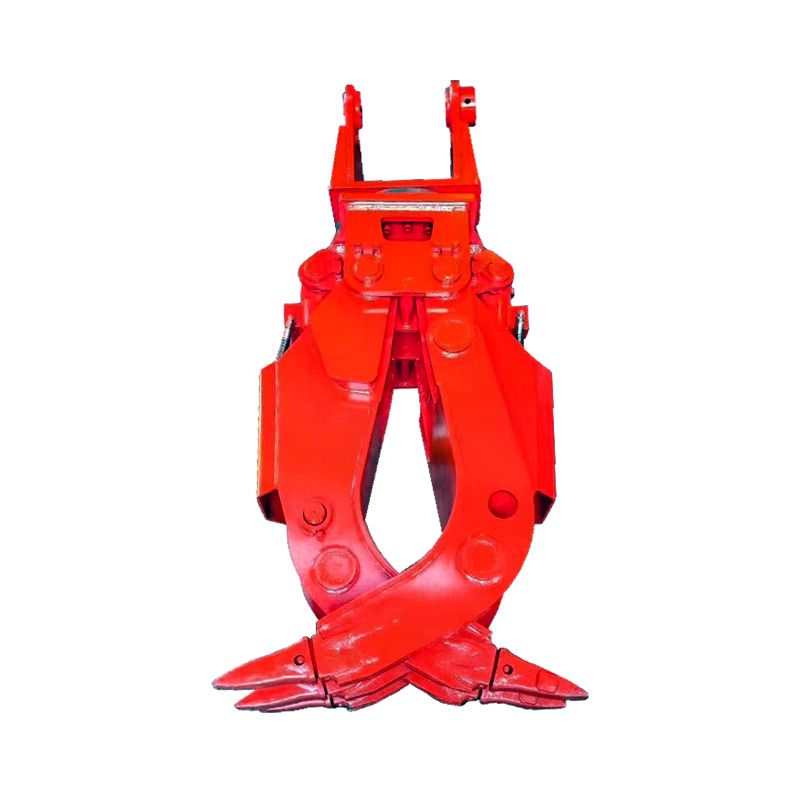

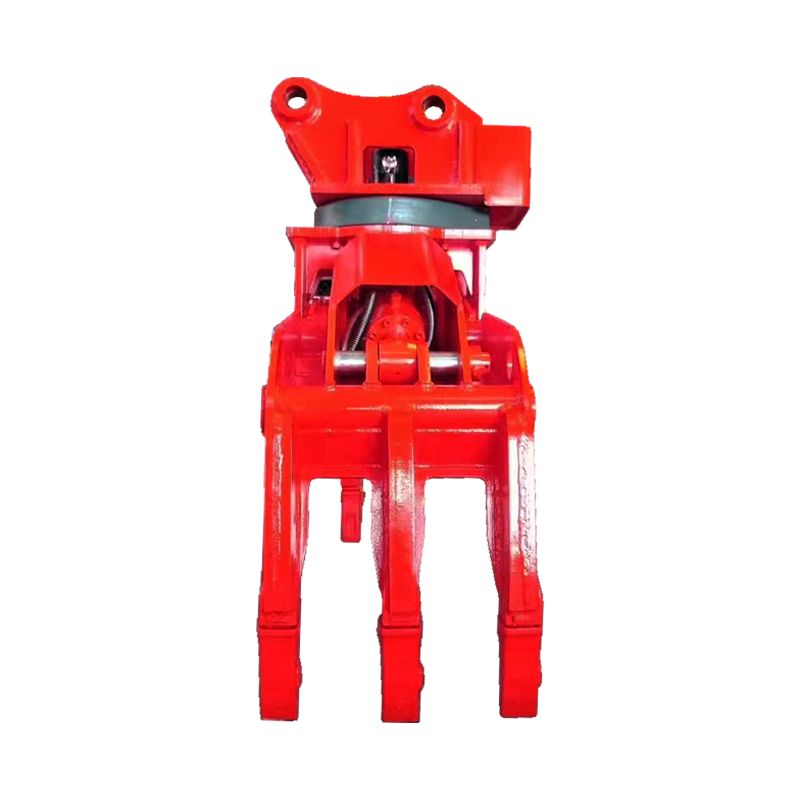

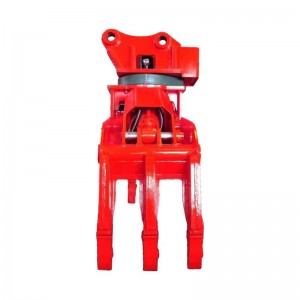

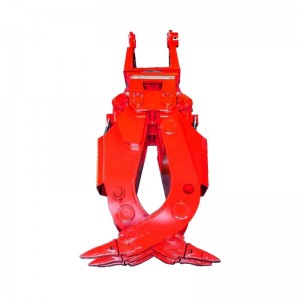

Five Fingers Excavator 360° Rotary Hydraulic Grapple for Handling Material Flexibly
All the different designs above make the rotary hydraulic grapple much stronger for heavier duty work condition, such as the big stone loading or position moving, log handling, demolition and the recycling. The 360° rotating function makes its operation more flexibly during your work, helps you avoid the trouble of picking up or putting down the target material by adjusting your excavator angle. Though the rotary hydraulic grapple is not cheap, it is really a good helper to save your time and make your work go more smoothly.
● Various brands of excavators and backhoe loaders can be matched perfectly.
● Available in Wedge Lock, Pin-on, S-Style to match different quick couplers.
● Material: Q355, Q690, NM400, Hardox450 available.

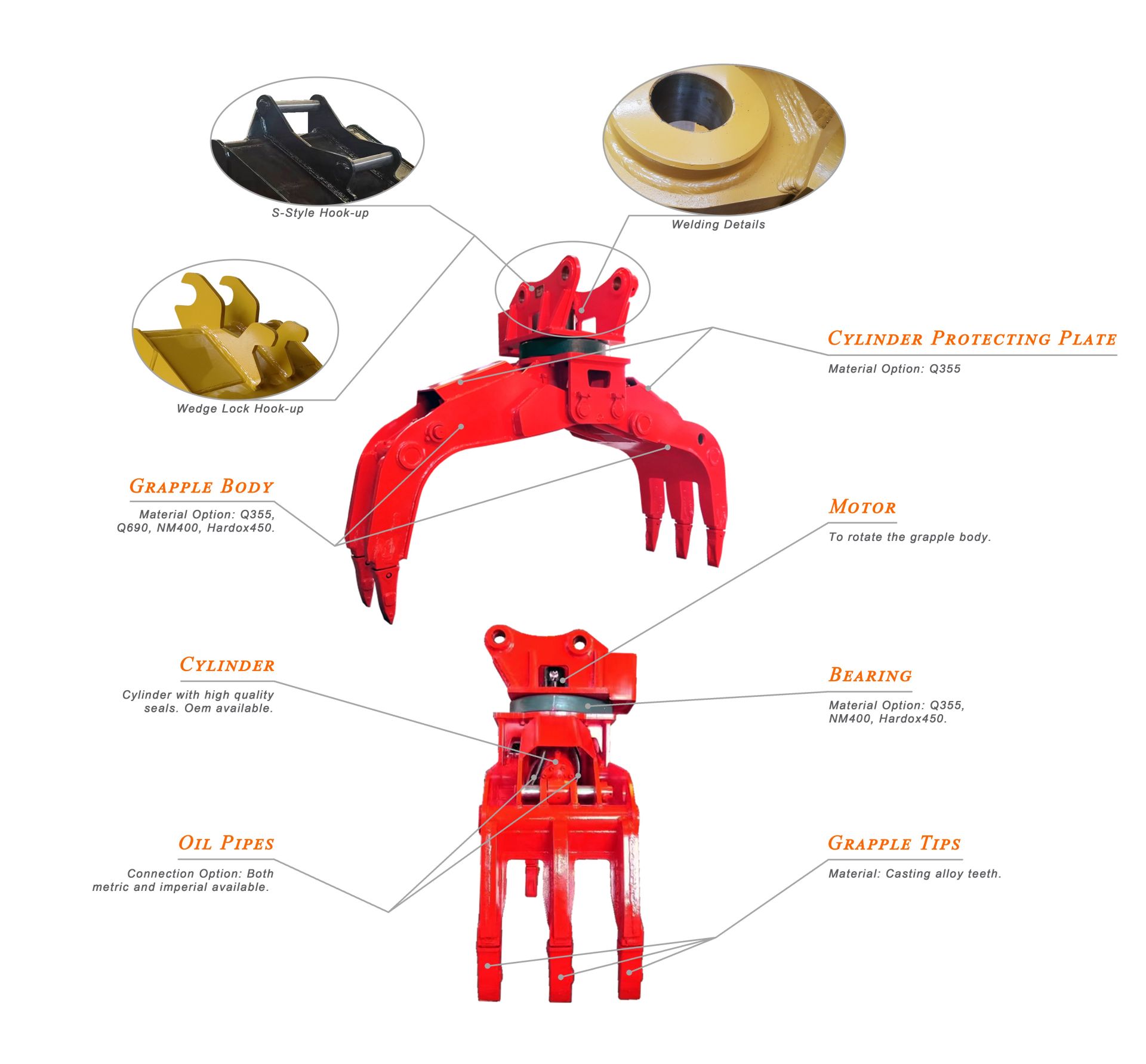

What are included of a Crafts Rotary Hydraulic Grapple?
- Grapple Body
- Hydraulic Cylinder * 2
- Hydraulic Pipes and Hydraulic Connection Ports (Both Imperial Units and Metric Units are Available)
- 6 Hardened Pins
- Bolts and Nuts for Fixing Pins
|
Model |
Weight |
Max Opening |
Operating Pressure |
Set Up Pressure |
Operating Flux |
Suitable Excavator |
|
Kg |
mm |
Kg/m² |
Kg/m² |
L/Min |
Ton |
|
|
CFT-RG50 |
300 |
1300 |
110-140 |
170 |
30-55 |
4-6 |
|
CFT-RG80 |
390 |
1400 |
120-160 |
180 |
50-100 |
7-11 |
|
CFT-RG120 |
740 |
1800 |
150-170 |
190 |
90-110 |
12-16 |
|
CFT-RG200 |
1380 |
2300 |
160-180 |
200 |
100-140 |
17-23 |
|
CFT-RG300 |
1700 |
2500 |
160-180 |
210 |
130-170 |
24-30 |
|
CFT-RG400 |
1900 |
2500 |
180-200 |
250 |
200-250 |
31-40 |
The rotary hydraulic grapple is also called rotary log grapple, hydraulic rotating grapple, 360°rotating grapple, multipurpose grapple. Taking place of buckets, Crafts rotary hydraulic grapple is suited for grabbing and placing, loading and unloading, sorting, raking. It turns your machine to an ideal machine for the secondary processing to handle various materials, such as stone, wood and timber, tube, loose material, sorting trash, steel, brick, stone and large rocks, etc. At Crafts, a full range of styles and sizes are designed to match different excavators for tasks.
